The Five Photos That Let Us Quote a Gasket Without a Part Number
Skip the tape measure. Five photos of your door, corner, channel and data plate are usually enough for an exact gasket quote, even on a discontinued unit.
Quick answer: Send five photos: the closed door straight on, the equipment data plate, a close-up of one gasket corner, the gasket pulled back to show the channel underneath, and the specific spot that's torn or gapping. Those five images give The Gasketeers enough information to match or fabricate a seal for almost any commercial unit, even when the part number is missing or decades out of production.
Most enquiries never need a tape measure or a model number. A worn gasket rarely fails the same way twice, so what actually speeds up a quote is a clear look at the door, the corner of the seal, and whatever is letting cold air out. If you would rather skip typing out a description, send your photos for a free quote and we will tell you if anything else is needed.
What Photos Do You Need for a Gasket Quote?
A gasket is defined by its cross-section shape and how it mounts to the door, not by a part number printed on a sticker somewhere. Photos capture both in a way a phone call never can. They show the profile, the shape of the gasket in cross-section, whether it snaps into a plastic retainer or screws in under a metal strip, and whether the actual problem is the gasket at all.
A door that will not seal is sometimes a hinge sagging out of square, a cam-lift closer that has lost its pull, or a bent frame rather than a bad seal. Photos let us catch that difference before ordering the wrong fix.
Need a gasket replaced?
Call us or send your unit's model number. Free quotes across Boulder County, usually same week.
The first photo is the whole door, closed, shot straight on from a few feet back. This shows the door count and swing (single or double, hinged or sliding) and tells us which service applies: Walk-In Cooler & Freezer Gaskets, Reach-In Cooler & Freezer Gaskets, Glass Display Door Gaskets, Prep Table Gaskets, or Refrigerated Drawer Gaskets. Standing back and squaring your shoulders to the door avoids the fisheye distortion a close-up phone shot creates.
Photo 2: The Data Plate
The data plate is the metal or vinyl tag, usually inside the door frame or on the interior wall, listing the manufacturer, model number, and serial number. A legible plate confirms the brand and roughly how old the unit is, even when the finish has faded past easy reading.
The Gasketeers service every major brand found in Boulder County kitchens, including True, Traulsen, Beverage-Air, Continental, Delfield, Hoshizaki, Turbo Air, Victory, Arctic Air, Master-Bilt, Kolpak, Nor-Lake, Randell, Silver King, Hobart, and Migali. If the plate is missing, corroded, or was painted over years ago, the remaining four photos still get us to an accurate quote.

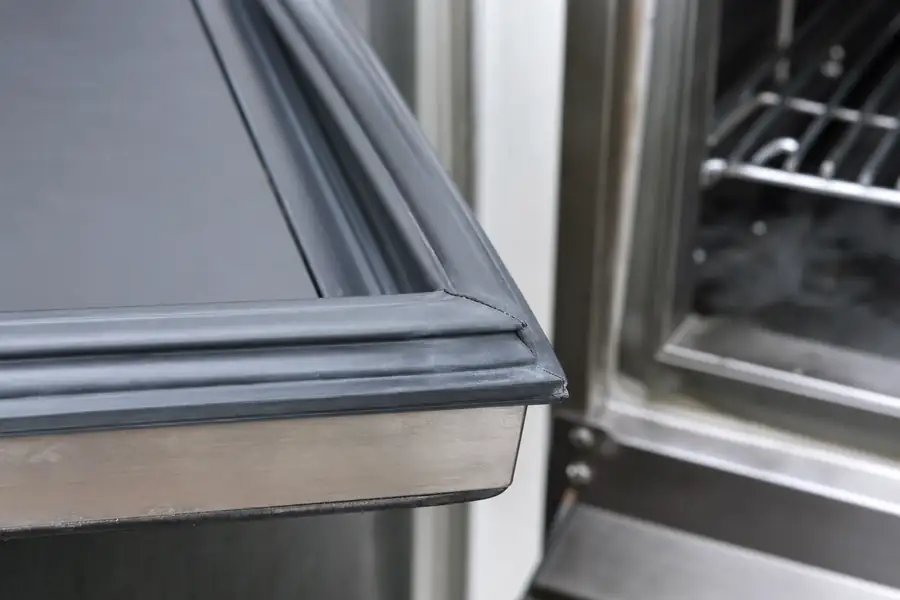

Photo 3: A Close-Up of One Gasket Corner
A close-up of one corner, filling the frame, shows the fin shape that seals against the door frame and confirms the mounting type: a snap-in gasket held by a plastic retainer that pries out by hand, or a screw-in gasket held under a metal retaining strip. Corners flex and wear first on any commercial door, so this photo usually shows the failure point as well as the profile.
Photo 4: The Gasket Pulled Back to Show the Channel
Pull the gasket away from the door by a couple of inches and photograph the channel or retainer underneath it. This shows how the seal actually attaches, whether by a magnetic insert, a screw strip, or an adhesive channel, and that detail matters as much as the outer profile for a correct fit. It also reveals rust or channel damage that a new gasket by itself will not fix.
Photo 5: The Damage or the Gap
The last photo is simply the problem itself: a split seam, a flattened section, a corner peeling off the door, or a visible gap where light shows through when the door is shut. Naming the symptom in the photo, frost building on one side, condensation dripping from a corner, a case running warm, helps confirm whether the fix is a straightforward gasket swap or whether the hinge, closer, or sweep is also out of alignment and letting the door hang crooked.

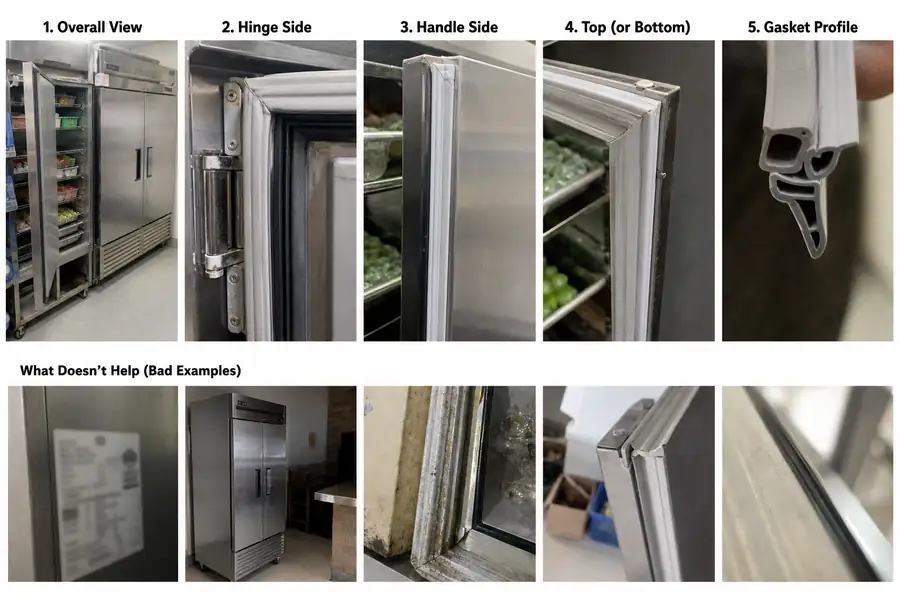

What Each Photo Tells Us
Between the five photos, we can usually confirm the exact seal without a site visit, often matching it directly to a listing in our online catalogue of gasket profiles.
What It Confirms
Whole door
Unit type and door count
Data plate
Brand, model, approximate age
Gasket corner
Profile shape and snap-in vs. screw-in mount
Channel, pulled back
Attachment method and channel condition
Damage or gap
Root cause: worn gasket vs. hinge, closer, or frame issue

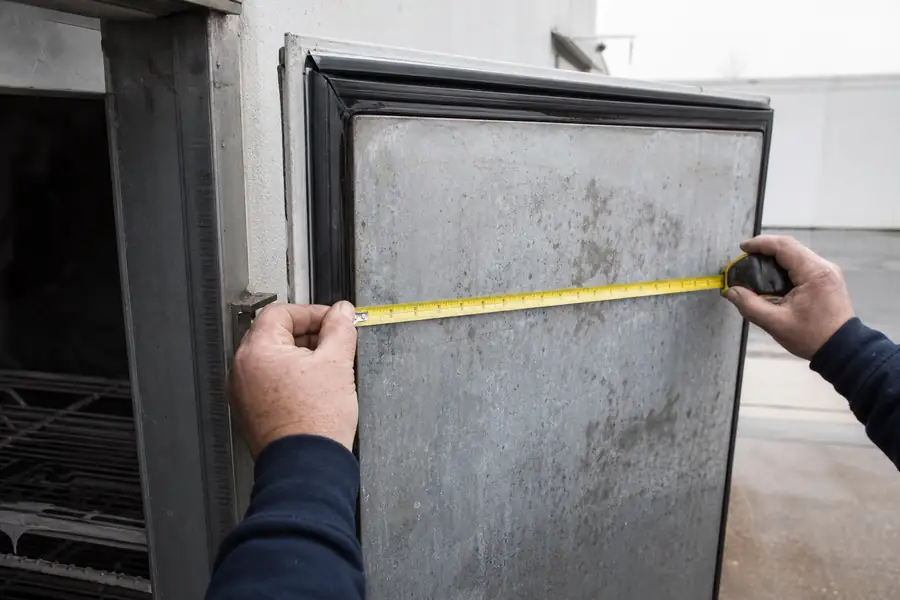

When We Will Still Need to Come Out and Measure
Photos cover most enquiries, but a small number still need a technician on site. If the gasket is torn in more than one place, if the door frame itself is bent, or if the unit is old enough that no catalog record exists for it, we may ask to see the physical part in person. That is the same process behind our Custom and obsolete unit gaskets service: a new seal built from the physical profile of the old one rather than from a part number, so a discontinued Kolpak walk-in in Longmont or a decades-old Silver King case in Louisville is never a reason to replace the whole unit.
Where to Send Your Photos
Text or email the five photos to The Gasketeers and most enquiries get a clear, no-obligation price back the same day. Include the kitchen's city, since a Boulder cafe and a Lafayette brewery kitchen often run different equipment, and mention any symptom you have noticed, like ice buildup or a warm case ahead of an inspection. Bookmark this photo checklist so the next worn seal takes five minutes to photograph instead of a guess over the phone.
Frequently asked questions
Can you identify a gasket from a photo?
Yes, in most cases. A photo showing the closed door, one gasket corner, and the channel underneath is usually enough to confirm the profile and mounting style without needing the physical part or a model number in hand.
What information do you need to order a refrigerator gasket?
For a commercial unit, the five photos described above cover nearly every request: the whole door, the data plate, a gasket corner, the channel pulled back, and the specific damage. Rough door width and height help too, but are not required to get started.
How do I get a gasket quote?
Send photos of your unit's door and gasket along with your kitchen's city and a short description of the problem, and expect a straightforward price back without needing a site visit for most standard units.
Do you need the model number to replace a gasket?
No. A legible data plate speeds things up by confirming brand and age, but a gasket can be matched or fabricated from the physical profile shown in photos even when the model number is missing, worn off, or long out of production.
What if my walk-in or reach-in is old and the brand is out of business?
An obsolete unit is not a reason to replace it. A gasket can be custom fabricated by copying the profile of the existing seal, which is how discontinued equipment across Boulder County kitchens gets sealed and running again.
